Tubing-Clamp
Introduction of Tubing Clamp
SKM
| Material | Galvanized steel and silicone rubber |
| Temperature Range | Min-40℃, max 200℃ |
| Applications | It is applied to fix the tubing and its elastic material has excellent ageing-resistant property |
Tech Specification
| Article no. | Fits to tubing size | fixing screw | width B (mm) | Pack Unit |
| SKM-AD10.0 | AD10.0 | M4 | 9 | 100 |
| SKM-AD13.0 | AD13.0 | M4 | 9 | 100 |
| SKM-AD15.8 | AD15.8 | M4 | 9 | 100 |
| SKM-AD18.5 | AD18.5 | M4 | 9 | 50 |
| SKM-AD21.2 | AD21.2 | M4 | 9 | 50 |
| SKM-AD21.2/M5 | AD21.2 | M5 | 13 | 50 |
| * SKM-AD25.5 | AD25.5 | M5 | 13 | 25 |
| SKM-AD28.5 | AD28.5 | M5 | 13 | 20 |
| SKM-AD31.5 | AD31.5 | M5 | 13 | 20 |
| SKM-AD31.5/M6 | AD31.5 | M6 | 13 | 20 |
| SKM-AD34.5 | AD34.5 | M6 | 13 | 20 |
| SKM-AD42.5 | AD42.5 | M6 | 13 | 20 |
| SKM-AD54.5 | AD54.5 | M6 | 13 | 20 |
| SKM-AD60.0 | AD60.0 | M6 | 13 | 10 |
| * SKM-AD67.2 | AD67.2 | M6 | 13 | 10 |
SKN
| Material | Galvanized steel and silicone rubber |
| Temperature Range | Min-40℃, max 200℃ |
| Applications | It is applied to fix the tubing and its elastic material has excellent ageing-resistant property |
| Material | Galvanized steel and silicone rubber |
Tech Specification

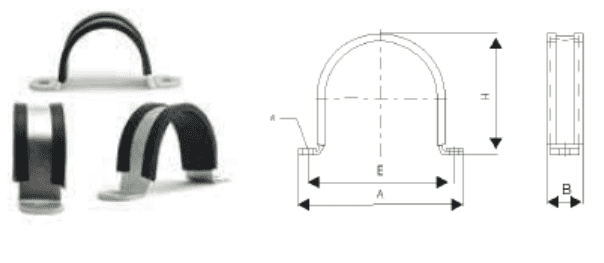

| Type | Fits to tubing size | Fixing screw | A | B | H | E | packet units |
| SKN-AD18.5 | AD18.5 | M6 | 60 | 19 | 28 | 42.3 | 50 |
| SKN-AD21.2 | AD21.2 | M6 | 63 | 19 | 29 | 43.7 | 50 |
| SKN-AD28.5 | AD28.5 | M6 | 70 | 19 | 33 | 51 | 20 |
| SKN-AD34.5 | AD34.5 | M6 | 76 | 19 | 36 | 57 | 20 |
| SKN-AD42.5 | AD42.5 | M6 | 84 | 19 | 46.5 | 65 | 10 |
| SKN-AD54.5 | AD54.5 | M6 | 97 | 19 | 58.5 | 78 | 10 |
| SKN-AD67.2 | AD67.2 | M8 | 122 | 24 | 72.5 | 97.2 | 5 |
| SKN-AD80.0 | AD80.0 | M8 | 134 | 24 | 84 | 110 | 5 |
| SKN-AD106.0 | AD106.0 | M8 | 160 | 24 | 110 | 136 | 5 |
SKM.D
| Material | Stainless steel and silicone rubber |
| Temperature Range | Min-40℃, max 200℃ |
| Applications | It is applied to fix the tubing and its elastic material has excellent ageing-resistant property |
Tech Specification
| Article no. | Fits to tubing size | fixing screw | width B (mm) |
| *SKM.D-AD10.0 | AD10.0 | M4 | 9 |
| SKM.D-AD10.0/M8 | AD10.0 | M8 | 19 |
| *SKM.D-AD13.0 | AD13.0 | M4 | 9 |
| SKM.D-AD13.0/M8 | AD13.0 | M8 | 19 |
| *SKM.D-AD15.8 | AD15.8 | M4 | 9 |
| SKM.D-AD15.8/M8 | AD15.8 | M8 | 19 |
| *SKM.D-AD18.5 | AD18.5 | M4 | 9 |
| SKM.D-AD18.5/M8 | AD18.5 | M8 | 19 |
| *SKM.D-AD21.2 | AD21.2 | M4 | 9 |
| *SKM.D-AD21.2/M5 | AD21.2 | M5 | 13 |
| SKM.D-AD21.2/M8 | AD21.2 | M8 | 19 |
| *SKM.D-AD25.5 | AD25.5 | M5 | 13 |
| *SKM.D-AD25.5/M8 | AD25.5 | M8 | 19 |
| *SKM.D-AD28.5 | AD28.5 | M5 | 13 |
| SKM.D-AD28.5/M8 | AD28.5 | M8 | 19 |
| *SKM.D-AD31.5 | AD31.5 | M5 | 13 |
| *SKM.D-AD31.5/M6 | AD31.5 | M6 | 13 |
| SKM.D-AD31.5/M8 | AD31.5 | M8 | 19 |
| *SKM.D-AD34.5 | AD34.5 | M6 | 13 |
| SKM.D-AD34.5/M8 | AD34.5 | M8 | 19 |
| *SKM.D-AD42.5 | AD42.5 | M6 | 13 |
| SKM.D-AD42.5/M8 | AD42.5 | M8 | 19 |
| *SKM.D-AD54.5 | AD54.5 | M6 | 13 |
| SKM.D-AD54.5/M8 | AD54.5 | M8 | 19 |
| *SKM.D-AD60.0 | AD60.0 | M6 | 13 |
| SKM.D-AD60.0/M8 | AD60.0 | M8 | 19 |
| *SKM.D-AD67.2 | AD67.2 | M6 | 13 |
| SKM.D-AD67.2/M8 | AD67.2 | M8 | 19 |
SKN.D
| Material | Stainless steel and silicone rubber |
| Temperature Range | Min-40℃, max 200℃ |
| Applications | It is applied to fix the tubing and its elastic material has excellent ageing-resistant property |
Tech Specification
| Article no. | Fits to tubing size | Fixing screw | A | B | H | E | packet units |
| SKN.D-AD18.5 | AD18.5 | M6 | 60 | 19 | 28 | 42.3 | 50 |
| SKN.D-AD21.2 | AD21.2 | M6 | 63 | 19 | 29 | 43.7 | 50 |
| SKN.D-AD28.5 | AD28.5 | M6 | 70 | 19 | 33 | 51 | 20 |
| SKN.D-AD34.5 | AD34.5 | M6 | 76 | 19 | 36 | 57 | 20 |
| SKN.D-AD42.5 | AD42.5 | M6 | 84 | 19 | 46.5 | 65 | 10 |
| SKN.D-AD54.5 | AD54.5 | M6 | 97 | 19 | 58.5 | 78 | 10 |
| SKN.D-AD67.2 | AD67.2 | M8 | 122 | 24 | 72.5 | 97.2 | 5 |
| SKN.D-AD80.0 | AD80.0 | M8 | 134 | 24 | 84 | 110 | 5 |
| SKN.D-AD106.0 | AD106.0 | M8 | 160 | 24 | 110 | 136 | 5 |
Advantages of Tubing-Clamp.
Convenient
Save time
Good quality
Pictures of Tubing-Clamp
Application of Tubing-Clamp
It is applied to fix the tubing and its elastic material has excellent ageing-resistant property.
