Polyamide12 HD V0 Tubing
Introduction of Polyamide 12 Tubing
Properties: Flexible and excellent tenacity, glossy surface, anti-friction, wind resistant, high mechanical strength, resistant to oil, acid and solvents. Black tubings UV-resistant, self-extinguishing, high grade of safety, free of halogen, phosphor and cadmium, medium wall thickness, passed RoHS. We have got railway certificates of Japan, France and Germany. Applications: Mechanical building, heavy equipment, electric factory, underground, electric vehicle building etc. Fit with: all Tubing connectors except WYTC open connectors.
WY-PA12-V0-D
| Material | Polyamide 12 |
| Color | Grey (RAL 7037), black (RAL 9005) |
| Temperature Range | Min-50℃,Max100℃,Short-term150℃ |
| Flame-retardant | V0 (UL94), according to FMVSS 302: self-extinguishing, Type B |
| Properties | Flexible and excellent tenacity, glossy surface, wind resistant, high mechanical strength, resistant to oil, acid and solvents. Anti-friction, excellent UV-resistant self-extinguishing, external installation, medium wall thickness free of halogen, phosphor and cadmium, passed RoHS. We have got railway certificates of Japan, France and Germany |
| Applications | Mechanical building, heavy equipment, electric factory, underground, electric vehicle building etc. |
| Fit with | All Tubing connectors except WYTC open connectors |
Tech Specification
| Article no. | Color | ID×OD | Stat.R | Dyn.R | Weight | PU |
| WY-PA12 | G/B | (mm×mm) | (mm) | (mm) | (kg/m±10%) | (m/ring) |
| WY-PA12-V0-D-AD10.0G | Grey | 6.2×10.0 | 15 | 35 | 0.021 | 100 |
| WY-PA12-V0-D-AD13.0G | Grey | 9×13.0 | 20 | 45 | 0.035 | 100 |
| WY-PA12-V0-D-AD15.8G | Grey | 11.5×15.8 | 25 | 55 | 0.047 | 100 |
| WY-PA12-V0-D-AD18.5G | Grey | 13.8×18.5 | 35 | 65 | 0.055 | 50 |
| WY-PA12-V0-D-AD21.2G | Grey | 16.5×21.2 | 40 | 75 | 0.073 | 50 |
| WY-PA12-V0-D-AD25.5G | Grey | 20.5×25.5 | 42 | 85 | 0.085 | 50 |
| WY-PA12-V0-D-AD28.5G | Grey | 22.5×28.5 | 45 | 100 | 0.099 | 50 |
| WY-PA12-V0-D-AD31.5G | Grey | 25.5×31.5 | 50 | 110 | 0.125 | 25 |
| WY-PA12-V0-D-AD34.5G | Grey | 28.5×34.5 | 55 | 120 | 0.136 | 25 |
| WY-PA12-V0-D-AD42.5G | Grey | 35.5×42.5 | 65 | 150 | 0.205 | 25 |
| WY-PA12-V0-D-AD54.5G | Grey | 47.5×54.5 | 80 | 190 | 0.263 | 25 |
| WY-PA12-V0-D-AD10.0B | Black | 6.2×10.0 | 15 | 35 | 0.021 | 100 |
| WY-PA12-V0-D-AD13.0B | Black | 9×13.0 | 20 | 45 | 0.035 | 100 |
| WY-PA12-V0-D-AD15.8B | Black | 11.5×15.8 | 25 | 55 | 0.047 | 100 |
| WY-PA12-V0-D-AD18.5B | Black | 13.8×18.5 | 35 | 65 | 0.055 | 50 |
| WY-PA12-V0-D-AD21.2B | Black | 16.5×21.2 | 40 | 75 | 0.073 | 50 |
| WY-PA12-V0-D-AD25.5B | Black | 20.5×25.5 | 42 | 85 | 0.085 | 50 |
| WY-PA12-V0-D-AD28.5B | Black | 22.5×28.5 | 45 | 100 | 0.099 | 50 |
| WY-PA12-V0-D-AD31.5B | Black | 25.5×31.5 | 50 | 110 | 0.125 | 25 |
| WY-PA12-V0-D-AD34.5B | Black | 28.5×34.5 | 55 | 120 | 0.136 | 25 |
| WY-PA12-V0-D-AD42.5B | Black | 35.5×42.5 | 65 | 150 | 0.205 | 25 |
| WY-PA12-V0-D-AD54.5B | Black | 47.5×54.5 | 80 | 190 | 0.263 | 25 |
Advantages of Polyamide12 Conduit:
1. Light weight, can reduce the quality of the vehicle and reduce fuel consumption.
2. Good resistance to vibration and corrosion.

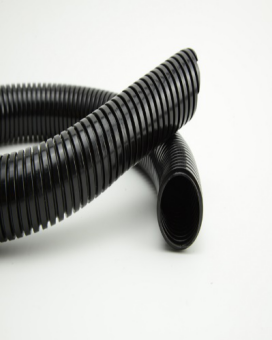

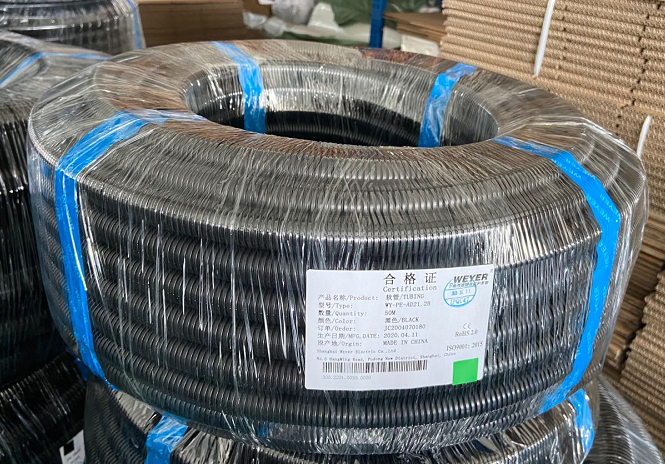

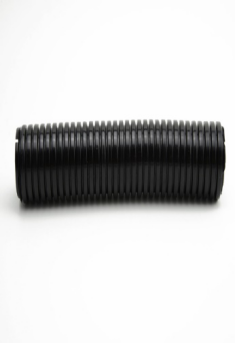

Pictures of Polyamide12 Tubing:
Application Polyamide12 Tubing:
Mechanical building, heavy equipment, electric factory, underground, electric vehicle building etc.
