Orange Polyamide12 Tubing
Introduction of Polyamide 6 Tubing
Properties: Flexible and excellent tenacity, glossy surface, anti-friction, wind resistant, high mechanical strength, resistant to oil, acid and solvents. Black tubings UV-resistant, self-extinguishing, high grade of safety, free of halogen, phosphor and cadmium, medium wall thickness, passed RoHS. We have got railway certificates of Japan, France and Germany. Applications: Mechanical building, heavy equipment, electric factory, underground, electric vehicle building etc. Fit with: all Tubing connectors except WYTC open connectors.
WY-PA12
|
Material |
Polyamide 12 |
|
Color |
Grey (RAL 7037), black (RAL 9005), orange（RAL 2009） |
|
Temperature Range |
Min-50℃,Max100℃,Short-term150℃ |
|
Flame-retardant |
V2 (UL94), according to FMVSS 302: self-extinguishing, Type B |
|
Properties |
Flexible and excellent tenacity, glossy surface, wind resistant, high mechanical strength, resistant to oil, acid and solvents. Anti-friction, excellent UV-resistant self-extinguishing, external installation, medium wall thickness free of halogen, phosphor and cadmium, passed RoHS. We have got railway certificates of Japan, France and Germany |
|
Applications |
Mechanical building, heavy equipment, electric factory, underground, electric vehicle building etc. |
|
Fit with |
All Tubing connectors except WYTC open connectors |
Tech Specification
| Article no. | Color | ID×OD | Stat.R | Dyn.R | Weight | PU |
| WY-PA12 | G/B | (mm×mm) | (mm) | (mm) | (kg/m±10%) | (m/ring) |
| WY-PA12-AD8.0G | Grey | 5.7×8.1 | 12 | 30 | 0.008 | 200 |
| WY-PA12-AD10.0G | Grey | 6.5×10.0 | 15 | 35 | 0.015 | 100 |
| WY-PA12-AD13.0G | Grey | 9.5×13.0 | 20 | 45 | 0.024 | 100 |
| WY-PA12-AD15.8G | Grey | 12.0×15.8 | 25 | 55 | 0.035 | 100 |
| WY-PA12-AD18.5G | Grey | 14.3×18.5 | 35 | 65 | 0.047 | 50 |
| WY-PA12-AD21.2G | Grey | 17.0×21.2 | 40 | 75 | 0.058 | 50 |
| WY-PA12-AD25.5G | Grey | 21.0×25.5 | 42 | 85 | 0.056 | 50 |
| WY-PA12-AD28.5G | Grey | 23.0×28.5 | 45 | 100 | 0.086 | 50 |
| WY-PA12-AD31.5G | Grey | 26.0×31.5 | 50 | 110 | 0.103 | 25 |
| WY-PA12-AD34.5G | Grey | 29.0×34.5 | 55 | 120 | 0.117 | 25 |
| WY-PA12-AD42.5G | Grey | 36.0×42.5 | 65 | 150 | 0.175 | 25 |
| WY-PA12-AD54.5G | Grey | 48.0×54.5 | 80 | 190 | 0.224 | 25 |
| WY-PA12-AD8.0B | Black | 5.7×8.1 | 12 | 30 | 0.008 | 200 |
| WY-PA12-AD10.0B | Black | 6.5×10.0 | 15 | 35 | 0.015 | 100 |
| WY-PA12-AD13.0B | Black | 9.5×13.0 | 20 | 45 | 0.024 | 100 |
| WY-PA12-AD15.8B | Black | 12.0×15.8 | 25 | 55 | 0.035 | 100 |
| WY-PA12-AD18.5B | Black | 14.3×18.5 | 35 | 65 | 0.047 | 50 |
| WY-PA12-AD21.2B | Black | 17.0×21.2 | 40 | 75 | 0.058 | 50 |
| WY-PA12-AD25.5B | Black | 21.0×25.5 | 42 | 85 | 0.056 | 50 |
| WY-PA12-AD28.5B | Black | 23.0×28.5 | 45 | 100 | 0.086 | 50 |
| WY-PA12-AD31.5B | Black | 26.0×31.5 | 50 | 110 | 0.103 | 25 |
| WY-PA12-AD34.5B | Black | 29.0×34.5 | 55 | 120 | 0.117 | 25 |
| WY-PA12-AD42.5B | Black | 36.0×42.5 | 65 | 150 | 0.175 | 25 |
| WY-PA12-AD54.5B | Black | 48.0×54.5 | 80 | 190 | 0.224 | 25 |
| WY-PA12/S-AD8.0B | Slit Black | 5.7×8.1 | 12 | 30 | 0.008 | 200 |
| WY-PA12/S-AD10.0B | Slit Black | 6.5×10.0 | 15 | 35 | 0.015 | 100 |
| WY-PA12/S-AD13.0B | Slit Black | 9.5×13.0 | 20 | 45 | 0.024 | 100 |
| WY-PA12/S-AD15.8B | Slit Black | 12.0×15.8 | 25 | 55 | 0.035 | 100 |
| WY-PA12/S-AD18.5B | Slit Black | 14.3×18.5 | 35 | 65 | 0.047 | 50 |
| WY-PA12/S-AD21.2B | Slit Black | 17.0×21.2 | 40 | 75 | 0.058 | 50 |
| WY-PA12/S-AD25.5B | Slit Black | 21.0×25.5 | 42 | 85 | 0.056 | 50 |
| WY-PA12/S-AD28.5B | Slit Black | 23.0×28.5 | 45 | 100 | 0.086 | 50 |
| WY-PA12/S-AD31.5B | Slit Black | 26.0×31.5 | 50 | 110 | 0.103 | 25 |
| WY-PA12/S-AD34.5B | Slit Black | 29.0×34.5 | 55 | 120 | 0.117 | 25 |
| WY-PA12/S-AD42.5B | Slit Black | 36.0×42.5 | 65 | 150 | 0.175 | 25 |
| WY-PA12/S-AD54.5B | Slit Black | 48.0×54.5 | 80 | 190 | 0.224 | 25 |
Advantages of Polyamide12 Conduit:
1. Light weight, can reduce the quality of the vehicle and reduce fuel consumption.
2. Good resistance to vibration and corrosion.

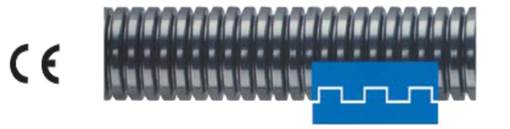

Pictures of Polyamide12 Tubing:
Application Polyamide12 Tubing:
Mechanical building, heavy equipment, electric factory, underground, electric vehicle building etc.
