Orange Polyamide Tubing
Introduction of Polyamide 6 Tubing
Properties: Flexible and excellent tenacity, glossy surface, anti-friction, wind resistant, high mechanical strength, resistant to oil, acid and solvents. Black tubings UV-resistant, self-extinguishing, high grade of safety, free of halogen, phosphor and cadmium, medium wall thickness, passed RoHS. We have got railway certificates of Japan, France and Germany. Heat aging through QC/T29106 3000h, heat aging 240h. Fit with: all Tubing connectors except WYTC open connectors.
WY-PA6-V0
|
Material |
Polyamide 6 |
|
Color |
Grey (RAL 7037), black (RAL 9005), orange（RAL 2009） |
|
Temperature Range |
Min-40℃,Max125℃，Short-term150℃ |
|
Protection degree |
IP68 |
|
Flame-retardant |
V0(UL94), self-extinguishing, A level, according to FMVSS 302 requirements, According to GB/2408 standard, flame retardant to V0 level |
|
Properties |
Flexible and excellent tenacity, glossy surface, anti-friction, wind resistant, high mechanical strength, resistant to oil, acid and solvents. Black tubings UV-resistant, self-extinguishing, high grade of safety, free of halogen, phosphor and cadmium, medium wall thickness, passed RoHS. We have got railway certificates of Japan, France and Germany. Heat aging through QC/T29106 3000h, heat aging 240h |
|
Applications |
Mechanical building, electric insulation protection, underground, electric vehicle and air-conditioner equipment etc. |
|
Fit with |
All Tubing connectors except WYTC open connectors |
Tech Specification
| Article no. | Color | ID×OD | Stat.R | Dyn.R | Weight | PU |
| WY-PA-V0 | G/B | (mm×mm) | (mm) | (mm) | (kg/m±10%) | (m/ring) |
| WY-PA6-V0-AD8.0G | Grey | 5.7×8.1 | 12 | 30 | 0.008 | 200 |
| WY-PA6-V0-AD10.0G | Grey | 6.5×10.0 | 15 | 35 | 0.021 | 100 |
| WY-PA6-V0-AD13.0G | Grey | 9.5×13.0 | 20 | 45 | 0.027 | 100 |
| WY-PA6-V0-AD15.8G | Grey | 12.0×15.8 | 25 | 55 | 0.035 | 100 |
| WY-PA6-V0-AD18.5G | Grey | 14.3×18.5 | 35 | 65 | 0.05 | 50 |
| WY-PA6-V0-AD21.2G | Grey | 17.0×21.2 | 40 | 75 | 0.058 | 50 |
| WY-PA6-V0-AD25.5G | Grey | 21.0×25.5 | 42 | 85 | 0.07 | 50 |
| WY-PA6-V0-AD28.5G | Grey | 23.0×28.5 | 45 | 100 | 0.095 | 50 |
| WY-PA6-V0-AD31.5G | Grey | 26.0×31.5 | 50 | 110 | 0.11 | 25 |
| WY-PA6-V0-AD34.5G | Grey | 29.0×34.5 | 55 | 120 | 0.125 | 25 |
| WY-PA6-V0-AD42.5G | Grey | 36.0×42.5 | 65 | 150 | 0.186 | 25 |
| WY-PA6-V0-AD54.5G | Grey | 48.0×54.5 | 80 | 190 | 0.256 | 25 |
| WY-PA6-V0-AD8.0B | Black | 5.7×8.1 | 12 | 30 | 0.008 | 200 |
| WY-PA6-V0-AD10.0B | Black | 6.5×10.0 | 15 | 35 | 0.021 | 100 |
| WY-PA6-V0-AD13.0B | Black | 9.5×13.0 | 20 | 45 | 0.027 | 100 |
| WY-PA6-V0-AD15.8B | Black | 12.0×15.8 | 25 | 55 | 0.035 | 100 |
| WY-PA6-V0-AD18.5B | Black | 14.3×18.5 | 35 | 65 | 0.05 | 50 |
| WY-PA6-V0-AD21.2B | Black | 17.0×21.2 | 40 | 75 | 0.058 | 50 |
| WY-PA6-V0-AD25.5B | Black | 21.0×25.5 | 42 | 85 | 0.07 | 50 |
| WY-PA6-V0-AD28.5B | Black | 23.0×28.5 | 45 | 100 | 0.095 | 50 |
| WY-PA6-V0-AD31.5B | Black | 26.0×31.5 | 50 | 110 | 0.11 | 25 |
| WY-PA6-V0-AD34.5B | Black | 29.0×34.5 | 55 | 120 | 0.125 | 25 |
| WY-PA6-V0-AD42.5B | Black | 36.0×42.5 | 65 | 150 | 0.186 | 25 |
| WY-PA6-V0-AD54.5B | Black | 48.0×54.5 | 80 | 190 | 0.256 | 25 |
| WY-PA6-V0/S-AD8.0B | Slit Black | 5.7×8.1 | 12 | 30 | 0.008 | 200 |
| WY-PA6-V0/S-AD10.0B | Slit Black | 6.5×10.0 | 15 | 35 | 0.021 | 100 |
| WY-PA6-V0/S-AD13.0B | Slit Black | 9.5×13.0 | 20 | 45 | 0.027 | 100 |
| WY-PA6-V0/S-AD15.8B | Slit Black | 12.0×15.8 | 25 | 55 | 0.035 | 100 |
| WY-PA6-V0/S-AD18.5B | Slit Black | 14.3×18.5 | 35 | 65 | 0.05 | 50 |
| WY-PA6-V0/S-AD21.2B | Slit Black | 17.0×21.2 | 40 | 75 | 0.058 | 50 |
| WY-PA6-V0/S-AD25.5B | Slit Black | 21.0×25.5 | 42 | 85 | 0.07 | 50 |
| WY-PA6-V0 /S-AD28.5B | Slit Black | 23.0×28.5 | 45 | 100 | 0.095 | 50 |
| WY-PA6-V0/S-AD31.5B | Slit Black | 26.0×31.5 | 50 | 110 | 0.11 | 25 |
| WY-PA6-V0/S-AD34.5B | Slit Black | 29.0×34.5 | 55 | 120 | 0.125 | 25 |
| WY-PA6-V0/S-AD42.5B | Slit Black | 36.0×42.5 | 65 | 150 | 0.186 | 25 |
| WY-PA6-V0/S-AD54.5B | Slit Black | 48.0×54.5 | 80 | 190 | 0.256 | 25 |
Advantages of Flexible Polyamide Conduit:
1. High mechanical strength, good toughness, high tensile and compressive strength.
2. The fatigue resistance is outstanding, and the parts can still maintain the original mechanical strength after repeated bending.
3. High softening point and heat resistance.

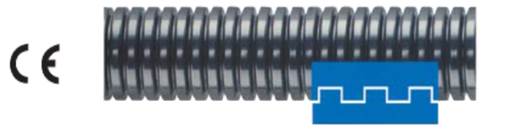

Pictures of Corrugated Polyamide Tubing:
Application of Polyamide Tubing:
Mechanical building, electric insulation protection, underground, electric vehicle and air-conditioner equipment etc.
