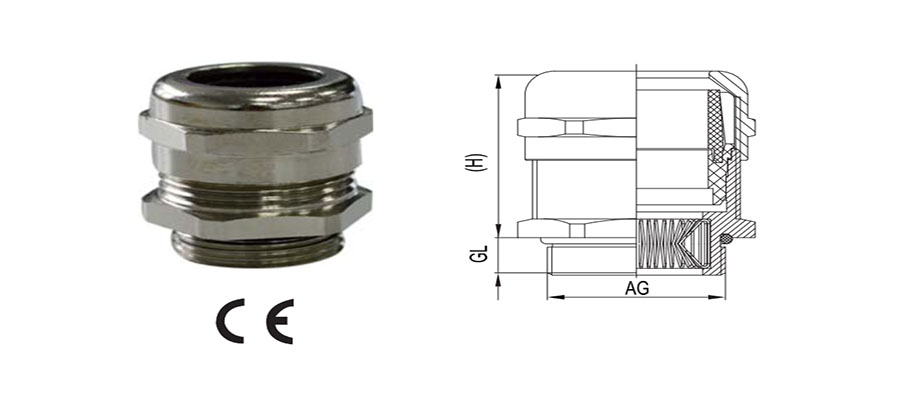

EMC Cable Gland (Metric/Pg thread)
Introduction
Cable glands are mainly used to clamp, fix, protect the cables from water and dust. They are widely applied to such fields as control boards, apparatuses, lights, mechanical equipment, train, motors, projects etc.We can provide you with EMC cable glands made of nickel-plated brass (Order No.: HSM-EMV.T), stainless steel (Order No.: HSMS-EMV.T) and aluminum (Order No.: HSMAL-EMV.T).
| Material: | Body: nickel-plated brass; spring: SS304; sealing: silicon rubber |
| Temperature Range: | Min -50℃, Max 200℃ |
| Protection degree: | IP68(IEC60529) with suitable O-ring within specified clamping range |
| Properties: | Resistance to vibration and impact, in accordance with IEC-60077-1999. |
| Shielding type: | Triangle Spring |
| Certifications: | CE, RoHS |
Specification
(Please contact us for more information if you need other sizes or threads not included in the following list.)
|
Article No. |
Connecting terminal |
Effective shielding |
Clamping range |
Thread |
Wrench size |
|
|
A |
B |
C |
F |
S |
|
HSM.ZX-EMV.T-M20/14 |
14 |
8~13 |
10~14 |
M20X1.5 |
24 |
|
HSM.ZX-EMV.T-M25/17-S |
17.5 |
11.5~16 |
13~17 |
M25X1.5 |
30 |
|
HSM.ZX-EMV.T-M25/17 |
19 |
13~16 |
14~17 |
M20X1.5 |
30 |
|
HSM.ZX-EMV.T-M25/20 |
19 |
13~18 |
16~20 |
M25X1.5 |
30 |
|
HSM.ZX-EMV.T-M32/21 |
22 |
14~20 |
17~21 |
M32X1.5 |
36 |
|
HSM.ZX-EMV.T-M32/25 |
25 |
17~24 |
21~25 |
M32X1.5 |
36 |
Application
